Three
New Composite Machines

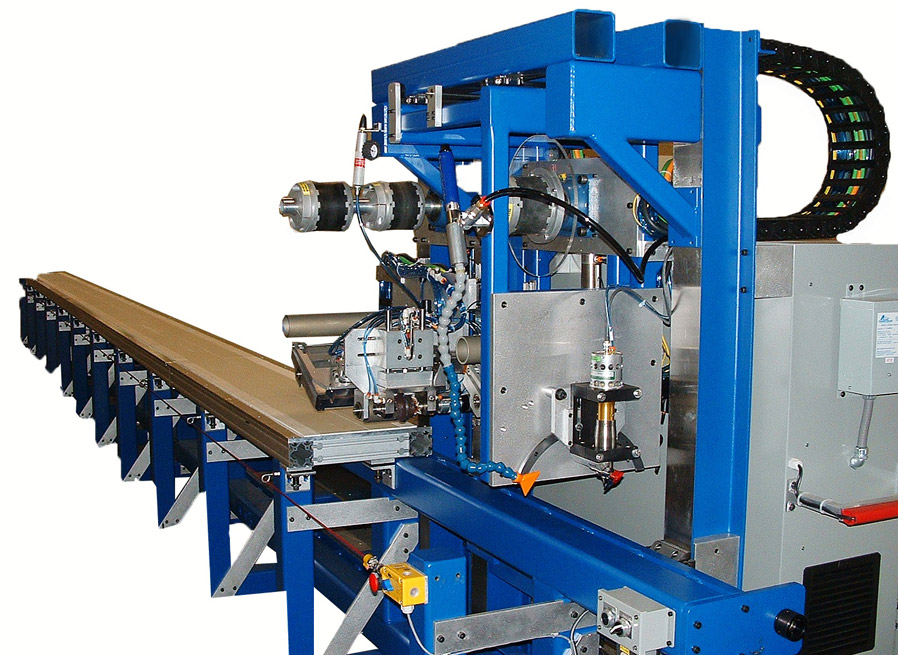

Stringer Laminator: builds a variety of long
thermoset stringer laminates for the aircraft industry.
Forms 12" wide laminates up to 36 feet long.
Carriage holds 3 different rolls of thermoset prepreg
fabric and 2 film rolls, and moves 60 feet under closed
loop servo control.
Material heads individually control position, web
tension, transverse cutting, and heating to ensure
tack.
Stylus cutter slices the unidirectional tape without
cutting through the backing paper.
Vacuum table is used to hold the laminate in place
as it is being formed.
Laydown speeds of 100 feet/minute
with edge alignment of ±0.010 inches and add/cut
accuracy of ±0.030 inches.

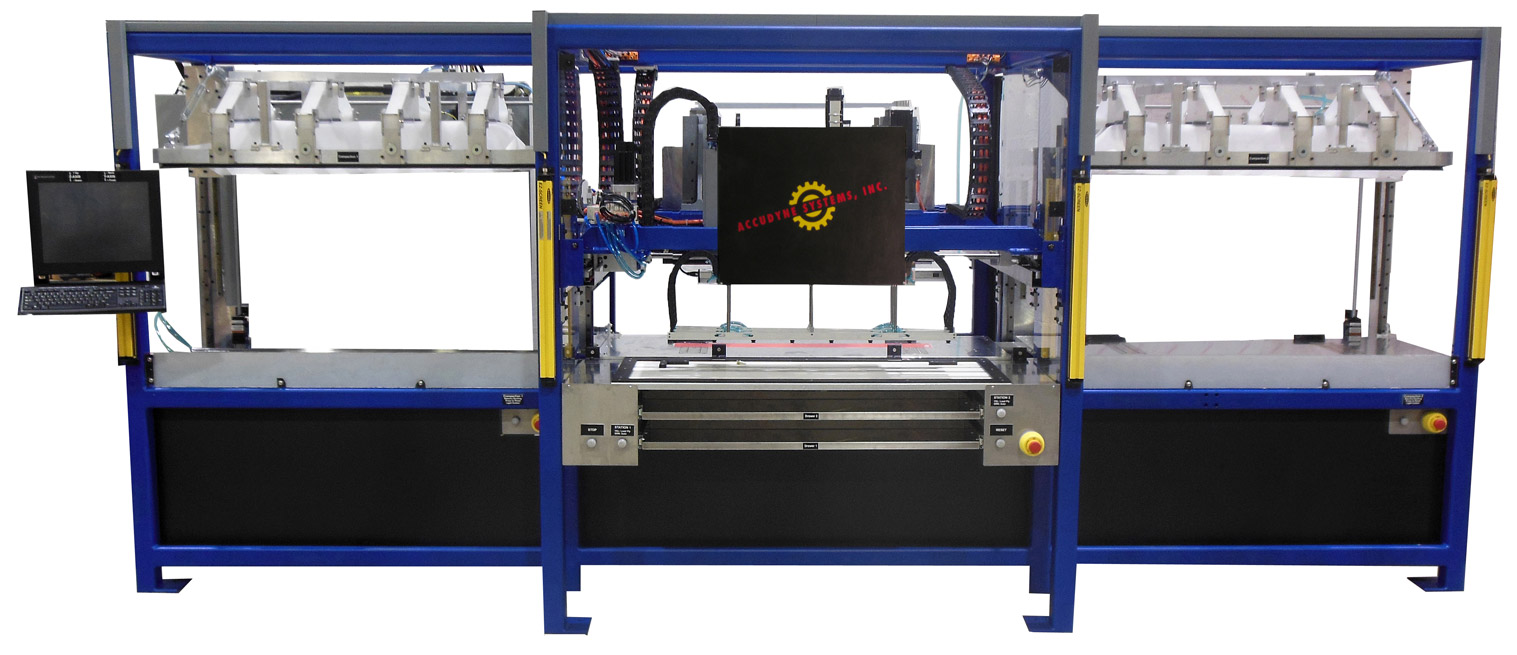

Turret loading system to automate material changeover. Bladder Wrapper : assembling five bladder wrapping
machine segments created a machine capable of wrapping
46' bladdersfor the aircraft industry.
Finite Element Analysis ensured proper frame design,
as each of the five machine modules had to generate
over 5000 pounds of clamping force during certain
steps of the wrapping process.
Dramatically decreased tool changeover time by utilizing
creative tooling geometry, allowing the operator to
perform a complete tooling change with the push of
a button.
Simplified machine installation by fabricating
5 identical
sub-machines.
Innovative machine construction facilitates cleaning
and maintenance.
Automatic bladder inflation and process optimization
minimize manual operator tasks and thereby increase
throughput.
Flat Tape Laying Machine : capable of laying,
compacting, and cutting prepreg thermoset tapes.
Gantry provided motion in the Y-direction, while
the translating and rotating table surface provided
motion in the X and directions, respectively.
A stylus cutter enabled precise
cutting of the unidirectional tape without cutting through the
backing paper.
Ultrasonic and
E-Beam curing technologies allowed curing of the composite panels
during lay-up.
A closed circuit video camera focused on the work
surface for process monitoring.
Provided all safety systems to contain E-Beam radiation.
About Accudyne Systems, Inc.
Since 1996, we have specialized in all aspects of custom
equipment, with a focus on solutions designed for each
client's specific needs. Our
7-step process takes your project from concept to
installation and support and ensures that you realize
savings, improved quality, and a competitive advantage.
